Buell Ulysses XB12XT Year: 2009

Δημοσίευσηαπό Dimitris την Δευτ Μαρ 30, 2009 9:05 pm

General information

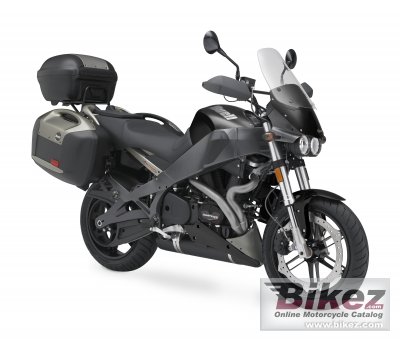

Model: Buell Ulysses XB12XT
Year: 2009
Category: Sport touring
Rating: Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating.
Engine and transmission
Displacement: 1202.88 ccm (73.40 cubic inches)
Engine type: V2
Stroke: 4
Power: 103.00 HP (75.2 kW)) @ 6800 RPM
Torque: 113.90 Nm (11.6 kgf-m or 84.0 ft.lbs) @ 6000 RPM
Compression: 10.0:1
Bore x stroke: 88.9 x 96.8 mm (3.5 x 3.8 inches)
Fuel system: Injection. 49 mm down draft DDFI III fuel injection
Valves per cylinder: 2
Fuel control: OHV
Starter: Electric
Gearbox: 5-speed
Transmission type
final drive: Belt
Clutch: Wet, multi-plate, compensated
Physical measures
Seat height: 780 mm (30.7 inches) If adjustable, lowest setting.
Overall length: 2,319 mm (91.3 inches)
Overall width: 1,006 mm (39.6 inches)
Ground clearance: 151 mm (5.9 inches)
Wheelbase: 1,369 mm (53.9 inches)
Chassis and dimensions
Frame type: Aluminium frame with Uniplanar™ powertrain vibration isolation system, fuel in frame
Rake (fork angle): 23.8°
Front suspension: 43 mm Showa inverted forks, fully adjustable (compression damping, rebound damping, and spring preload)
Front suspension travel: 125 mm (4.9 inches)
Rear suspension: Showa coil-over monoshock with remote reservoir and remote spring preload adjustment, fully adjustable (compression damping, rebound damping, and spring preload)
Rear suspension travel: 125 mm (4.9 inches)
Front tyre dimensions: 120/70-ZR17
Rear tyre dimensions: 180/55-ZR17
Front brakes: Single disc. ZTL™ brake, 6-piston, fixed caliper; 375 mm single-sided, inside-out, stainless steel, floating rotor
Front brakes diameter: 375 mm (14.8 inches)
Rear brakes: Single disc. Two-piston, direct mount caliper; stainless steel, fixed rotor
Rear brakes diameter: 240 mm (9.4 inches)
Exhaust system: Tuned, tri-pass resonance chamber with InterActive valve and mass-centralised mounting
Speed and acceleration
Other specifications
Fuel capacity: 16.65 litres (4.40 gallons)
Color options: Racing Red; Thrust Blue; Midnight Black
