General information

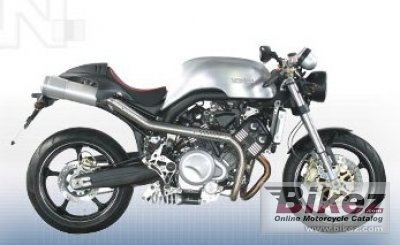

Model: Voxan Black Magic
Year: 2009
Category: Naked bike
Rating: Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating.
Engine and transmission
Displacement: 996.00 ccm (60.78 cubic inches)
Engine type: V2
Stroke: 4
Power: 100.00 HP (73.0 kW)) @ 8000 RPM
Torque: 97.00 Nm (9.9 kgf-m or 71.5 ft.lbs) @ 6500 RPM
Compression: 10.5:1
Bore x stroke: 98.0 x 66.0 mm (3.9 x 2.6 inches)
Fuel system: Injection. MSPFI
Valves per cylinder: 4
Cooling system: Liquid
Gearbox: 6-speed
Physical measures
Dry weight: 185.0 kg (407.9 pounds)
Seat height: 820 mm (32.3 inches) If adjustable, lowest setting.
Overall length: 2,100 mm (82.7 inches)
Ground clearance: 159 mm (6.3 inches)
Wheelbase: 1,475 mm (58.1 inches)
Chassis and dimensions
Frame type: Double tubular
Rake (fork angle): 24.7°
Front suspension: Inverted fork, 43 mm
Front suspension travel: 120 mm (4.7 inches)
Rear suspension travel: 120 mm (4.7 inches)
Front tyre dimensions: 120/70-ZR17
Rear tyre dimensions: 180/55-ZR17
Front brakes: Double disc. Bremo, 4-piston caliper
Front brakes diameter: 320 mm (12.6 inches)
Rear brakes: Single disc. Bremo, 2-piston caliper
Rear brakes diameter: 245 mm (9.6 inches)
Speed and acceleration
Power/weight ratio: 0.5405 HP/kg
Other specifications
Fuel capacity: 19.00 litres (5.02 gallons)
Oil capacity: 3.80 litres (0.25 quarts)
Color options: Silver
